Koshin WHEEL KIT KTZ\WK-12\WK-12A
€130.00
Excluding VAT

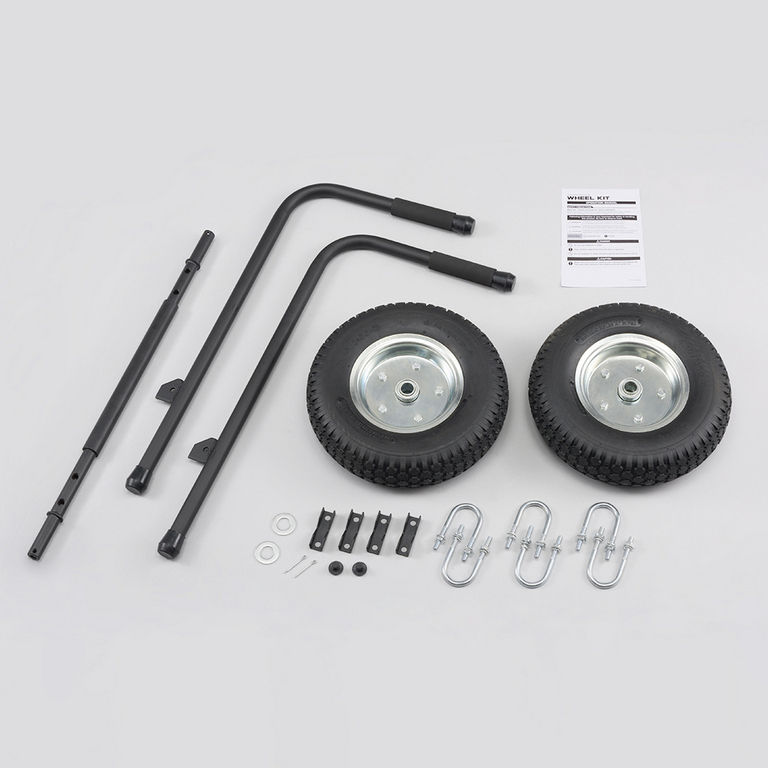

The Koshin WHEEL KIT KTZ\WK-12\WK-12A is a heavy-duty, genuine accessory designed to provide effortless mobility for your Koshin water pumps. Engineered for durability, this kit transforms stationary equipment into a portable unit, allowing for easy transport across rugged jobsites or uneven terrain. It features high-quality wheels and all necessary mounting hardware for a quick, bolt-on installation.

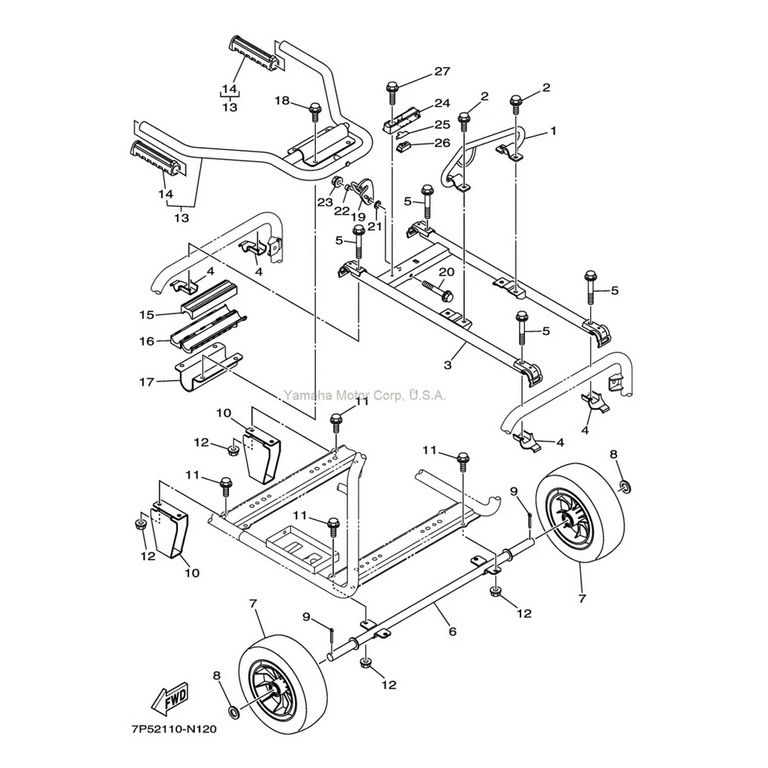

Parts List
| Ref No. / Part No. |
Description and Quantity |
| 01 / 7P6-E1119-00-00 |
HANGER, ENGINE (1) |
| 02 / 11,1795802-08016-00 |
BOLT, FLANGE (16) |
| 03 / 7P6-F2815-00-00 |
FRAME, CARRIER 1 (1) |
| 04 / 7P6-F284K-00-00 | PALTE 74 (1) |
| 05 / 95802-08045-00 |
BOLT, FLANGE (4) |
| 06 / 7P6-F5181-00-00 |
AXLE, WHEEL (1) |
| 07 / 7P6-F5101-20-00 |
FRONT WHEEL (2) |
| 08 / 92902-20600-00 | WASHER (2) |
| 09 / 91402-30040-00 |
PIN, COTTER (2) |
| 10 / 7P6-F7111-00-00 |
STAND, MAIN (2) |
| 12 / 95702-08500-00 |
NUT, FLANGE (8) |
| 13 / 7P6-F6110-00-00 |
HANDLE ASSY (1) |
| 14 / 7P6-F622F-00-00 |
DAMPER, LOCATING 1 (1) |
| 15 / 7P6-F612R-00-00 | SLEEVE (1) |
| 16 / 7P6-F6224-00-00 |
BRACKET, HANDLE 2 (1) |
| 18 / 7P6-F6157-00-00 |
LEVER, LOCK (1) |
| 19 / 95802-08060-00 |
BOLT, FLANGE (1) |
| 20 / 90202-12M25-00 |
WASHER, PLATE (1) |
| 21 / 90387-088U2-00 | COLLAR (1) |
| 22 / 95602-08200-00 |
NUT, SELF-LOCKING (1) |
| 23 / 7P6-F629E-00-00 | STOPPER (1) |
| 24 / 7P6-F6299-00-00 | PLATE, 2 (1) |
| 25 / 7P6-F6113-00-00 | DAMPER (1) |
| 26 / 95802-06016-00 |
BOLT, FLANGE (1) |
| 27 / 7T0-R2515-00-00 |
GRIP, HANDLE (2) |
