KOSHIN Volute Casing — Part No. 0121444
€199.00
Excluding VAT

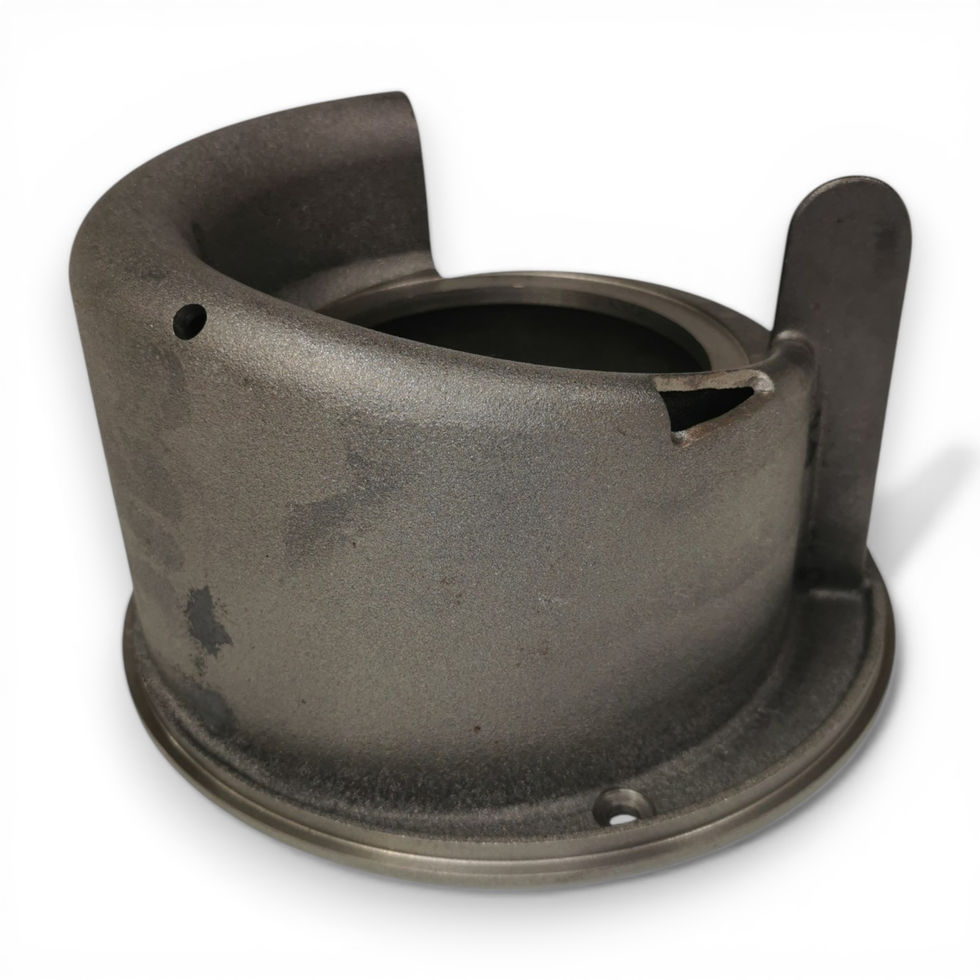

Genuine Koshin Volute Casing — Part No. 0121444
Product Overview
The Genuine Koshin Volute Casing (Part No. 0121444) is an Original Equipment Manufacturer (OEM) heavy-duty internal pump housing engineered specifically for Koshin 4-inch (100 mm) industrial trash pumps, including the KTH-100S and KTZ-100S series.
Cast from high-grade, abrasion-resistant iron alloy, this internal volute casing houses the main impeller and forms the core hydraulic compression chamber. It directs high-velocity fluid, mud, sand, and large solid particles efficiently into the upper discharge chamber while protecting the outer pump case from severe internal wear and cavitation damage.
Key Specifications
| Feature | Details |
|---|---|
| Brand | Koshin Ltd. (Japan) |
| Part Number | 0121444 |
| Part Name | Volute Casing / Volute Case |
| Material Grade | High-Abrasion Resistant Cast Iron / Ductile Iron |
| Nominal Size | 4-inch (100 mm) Pump Chamber |
| Compatible Equipment | Koshin KTH-100S & KTZ-100S Heavy-Duty Trash Pumps |
| Primary Function | Directs fluid velocity and handles solid debris inside pump chamber |
| Standard Qty per Pump | 1 pc required |
Model Compatibility
Koshin KTH-100S (4" Engine-Driven Heavy-Duty Trash Pump powered by Honda GX390)
Koshin KTZ-100S (4" Heavy-Duty Trash Pump Series)
Design & Key Features
Extreme Wear & Impact Resistance: Engineered specifically for trash pumps to handle severe scouring from sand, gravel, stones, and construction site slurry without premature thinning or cracking.
Optimized Hydraulic Velocity: Precision-contoured inner spiral geometry maximizes flow efficiency and head pressure, ensuring steady volume output under heavy debris loads.
Guaranteed Direct OEM Fit: Precision-machined mounting points allow for a perfect drop-in replacement, ensuring proper alignment with the front cover, impeller clearance, and casing O-ring seals.
Package Includes & Tech Notes
1x Genuine Koshin Volute Casing (0121444)
Maintenance Tip: When replacing the volute casing, inspect the Volute O-Ring and check the clearance between the volute face and the impeller. Adjust with Impeller Adjusting Washers if necessary to ensure peak pumping efficiency and prevent internal friction.
EAN Code
4260278625510
